Name: China P6 P7.62 P10 Stage Background LED Video Wall Display Advertising Videos Indoor Led Display
Brand: Shenzhen Brighter Led Technology Co.,Ltd
SKU: P6/P7.62/P10
Availability: InStock

Home Products Indoor LED Module

China P6 P7.62 P10 Stage Background LED Video Wall Display Advertising Videos Indoor Led Display

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	Brighter
Model Number:	P6/P7.62/P10

Contact Now

Detailed Product Description

Type:	LED	Application:	Indoor
Use:	Advertising Publish, Retail Store, Shopping Mall, Display Of Dishes, Welcome Display, Self-service Business, Exhibition Hall, Wayfinding, Airport, Subway, Elevator, Restaurant & Hotel Supplies, Education, Medical Treatment	Media Available:	Datasheet, Photo, Other
Color:	Full Color	Pixels:	Other, Other
Pixel Configuration:	1R1G1B	Life Span:	100000Hours
Communication Distance:	<100M	Supplier Type:	Original Manufacturer
Function:	SDK	Specification:	Video Wall
Screen Type:	Capacitive, Resistive	Brightness:	700-1500mcd/m², 700-1500mcd/m²
Lifespan (hours):	100000Hours, 100000Hours	Panel Size:	192192/244244/320160mm, 192192/244244/320160mm
View Angle（H/V）:	140/120, 140/120	HS Code:	8531200000

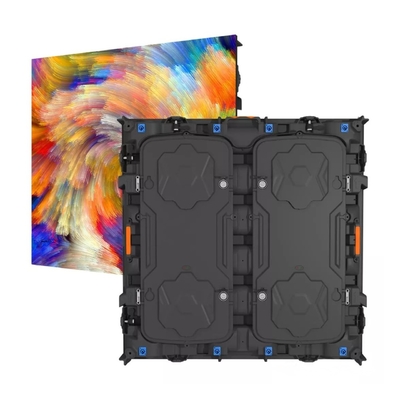

Product Display

Module Details

192*192mm

P7.62

244*244mm

320*160mm

Cabinet Detail

576*576mm

(P6)

732*732mm

(P7.62)

960*960mm

(P10)

Product Parameter

Item			P6	P7.62	P10
Module	Module Dimension	192*192mm	244*244mm	320*160mm
		Pixel Pitch	6mm	7.62mm	10mm
		Pixel density	27777dots/m²	17222dots/m²	10000dots/m²
		Pixel configuration	1R1G1B	1R1G1B	1R1G1B
		Pixel resolution	32*32dots	32*32dots	32*16dots
		Average power	19W	13W	13W
		Panel weight	0.6W	0.5KG	0.35KG
Cabinet	Cabinet dimension	576*5760mm	732*732mm	960*960mm
		Quantity of module	9PCS	9PCS	18PCS
		Best viewing angle	140/120	140/120	140/120
		Best viewing distance	6-20M	8-25M	11-30M
Technical signal index	Refresh frequency	1920HZ/S	1920HZ/S	1920HZ/S
		Brightness	900-1500mcd/m²	700-1000mcd/m²	800-900mcd/m²
		Life span	100000Hours	100000Hours	100000Hours
		Communication distance	<100M	<100M	<100M

Packaging & Delivery

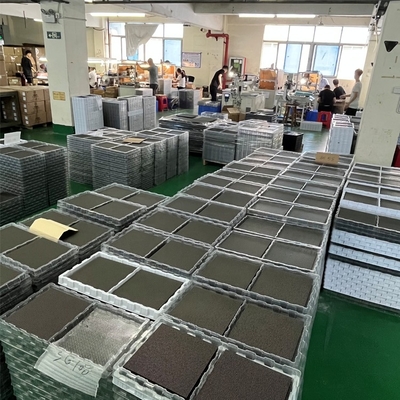

Company Profile

19 Years Factory Outlet of SMD LED Modules: Indoor P0.9—P10 & Outdoor P2.5—P10

Quality stability: Use the most advanced imported YAMAHA 40R high-speed SMT machine to make SMT into LED modules
Capacity stability: 40KK Patch Count Daily Output, SMT Machine*50, Solder Paste Printing*15, Reflow Welding Machine*10

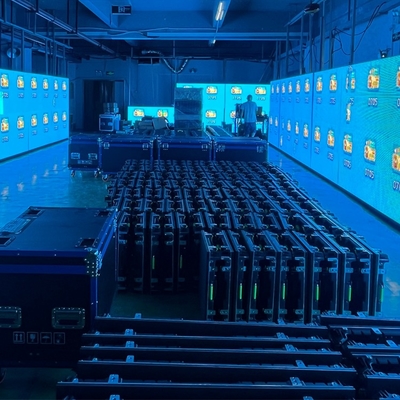

Full quality inspection: 2000+㎡ Aging Area. 72h SMD Lamp Aging Test → 8h Led Module Aging Test → Pre-Installed Led Screen 72h Aging Test. Waterproof test & Vibration test

FAQ

Q1:Are you a manufacturer or trading company?

A1:We are a Professional OEM/ODM manufacturer which has specialized in led display industry for more than 19 years. Welcome to visit our factory.

Q2:How does your factory do regarding quality control?

A2:Quality is priority. Brighter people always attach great importance to quality controlling from the very beginning to the very end. We focus on every detail, our factory has gained ISO9001, ISO14001, CE, RoHS ,FCC authentication

.
Q3:What is your MOQ?

A3:Any quantity is acceptable for your order. And the price is negotiable for large quantity.

Q4:When will you make the delivery?
A4:We can make the delivery within 3-5 working days for the led modules and 10-15days for the led finished screen according to the size and quantities of your order.

Q5:What technical supports can you offer?
A5:We provide all kinds of technology trainings for free, including the operation and maintenance training of the LED screens in our factory. We can send an engineer team to the country of the customer to instruct the installation.

Q6:Do you provide any free spare parts in each order?
A7:Yes, a certain amount of spare parts will be provided for free, spare parts including module, power cable, signal cable, LED lamp, IC, mask, power supply, receiving card, etc. ONE-STOP Supply of Ground Support and Truss.
